TITAN NXUS Beams

Shore up to 5,000 square feet in a single day with two crew members!

The lightweight aluminum members are easy to install and minimize crane requirements. A two-person crew is fully capable of installing an entire deck safely from the ground.

We aim to have a completely wood-free worksite with our shoring, from filler conditions to guardrails. Our system will drastically save on your lumber and labor costs.

Contact our sales team to start your customized equipment rental or purchase.

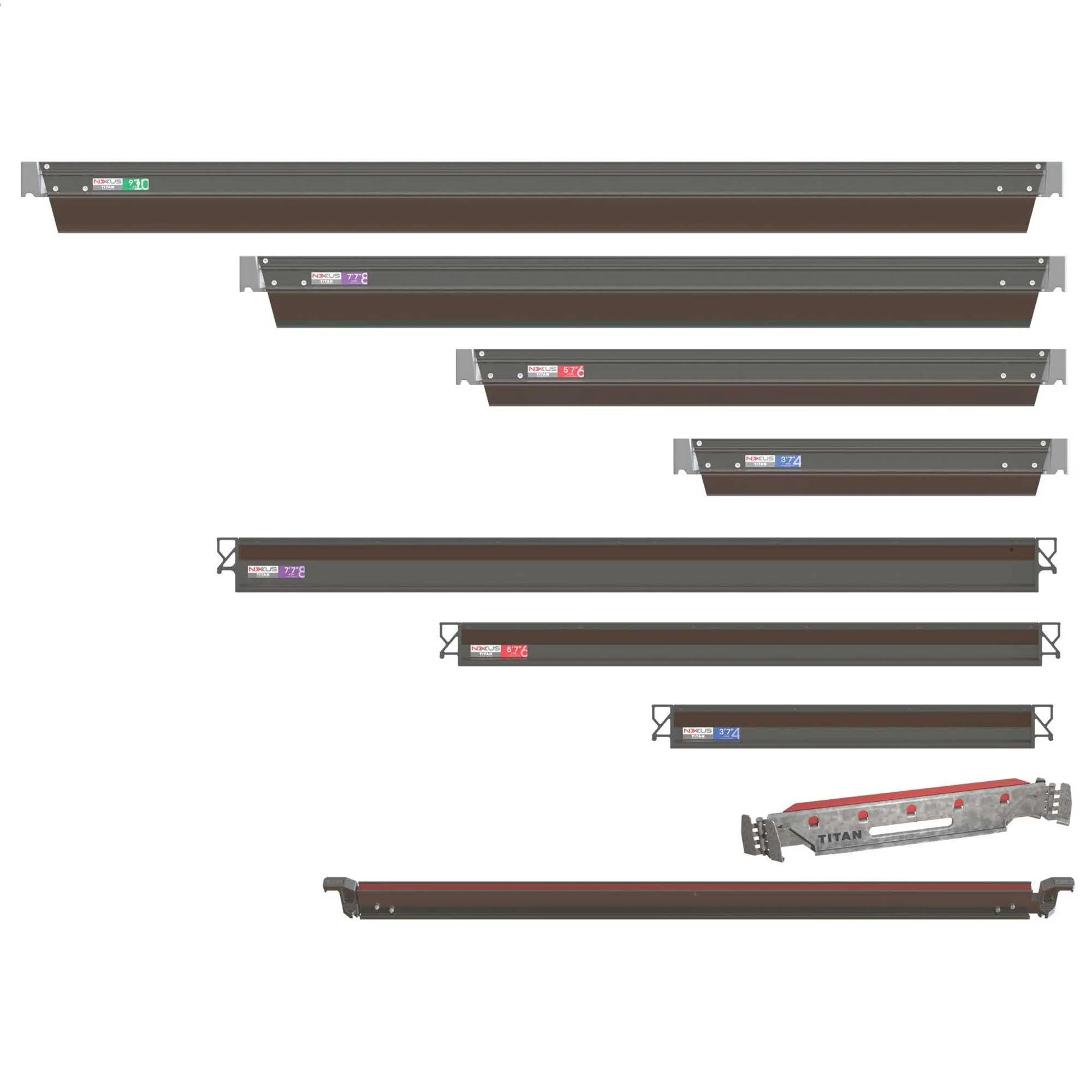

NXUS Beams

The uniform length of the primary and secondary beams provides the ability to turn the system wherever needed to continue the flow of work.

NXUS Main Beams

  • #10 MB - 11’6” (3.5m) - 70.1lb

  • #8 MB - 7’7” (2.3m) - 48lb

  • #6 MB - 5’7” (1.7m) - 34lb

  • #4 MB - 3’9” (1.15m) - 22.8lb

NXUS Secondary Beams

  • #8 SB - 7’7” (2.3m) - 19lb

  • #6 SB - 5’7” (1.7m) - 13.7lb

  • #4 SB - 3’7” (1.1m) - 9.4lb

Special BEAMS

TITAN’s HV & TITAN XL Shores

HV Shores

Steel shores capable of shoring up to 18'10" (5.8m).

  • #1.75 Post Shore (with Drophead) - 3’6”-5’9” (1.08m-1.75m) - 26lb/11.8kg

  • #2.5 Post Shore (with Drophead) - 4’-9”-8’2” (1.46m-2.5m) - 33lb/15kg

  • #3.5 Post Shore (with Drophead) - 6’5”-11’5” (1.96m-3.5m) - 42lb/19kg

  • #4 Post Shore (with Drophead) - 9’7”-14’4” (2.9m-4.35m) - 65.5lb/29.7kg

  • #5 Post Shore (with Drophead) - 10’9”-18’10” (3.3m-5.5m) - 86.8lb/39.4kg

XL Shores

Our 25k lightweight, modular and all-aluminum shore is capable of single post shore heights up to 24'7" (7.5m). Heights above 21'4" (6.5 m) can be reached with our 1 m extension.

  • XL 625 (with Drophead) - 15’2”-21.4” (4.6m-6.5m) - 91lb/41.3kg

  • XL 350 - (with Drophead) - 7’4”-12’4” (2.2m-3.8m) - 64.5lb/29.3kg

  • XL 1m Extension - 1m - 12.5lb/5.7kg

  • XL 2m Extension - 2m - 24lb/10.8kg
